Fuel Nozzle Series

The sealing device is integrated with the nozzle body, and when the oil flows quickly, it will create negative pressure inside the pressure sensing system. Normally, the negative pressure is maintained by gas supplemented by the ventilation pipe to maintain balance. When the fuel tank level rises and overflows, and the vent pipe is closed, the negative pressure in the pressure sensing system quickly rises. The diaphragm drives the switch card to move, causing the gun mechanism to shift out. Within 0.3 seconds, the self sealing closing action can be completed to prevent the medium from overflowing

AC-11A/AC-11B/AC-120/AC-120B/Z • va80/AC-200/AC-310

FUEL DISPENSING EQUIPMENT

Fuel Nozzle Product Range

Automatic shut-off, manual and high-flow fuel nozzles for diesel, gasoline, kerosene, HVO, XTL and biodiesel applications.

Automatic Shut-Off Fuel Nozzles

AC-11A

5–60L/min automatic nozzle with 3/4-inch inlet.

AC-11B

5–60L/min nozzle for self-service and card-lock systems.

AC-11AP 1/2"

1/2-inch AC-11A-series nozzle variant.

AC-120

Heavy-duty 1-inch automatic nozzle, up to 120L/min.

AC-120B

High-flow 1-inch automatic nozzle, up to 120L/min.

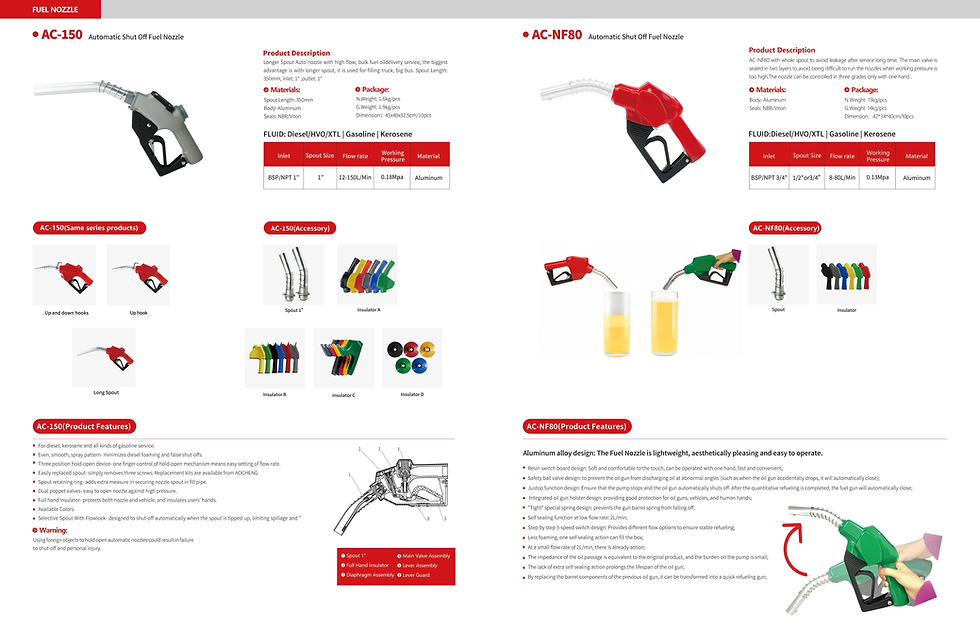

AC-150

Long-spout automatic nozzle, up to 150L/min.

AC-NF80

Anti-drip automatic nozzle, up to 80L/min.

Z•VA-80

Compact automatic nozzle, 5–60L/min.

Z•VA-80(2.0)

Updated Z•VA-80 automatic nozzle.

Z•VA-120

Heavy-duty automatic nozzle, up to 120L/min.

Z•VA-200

Large-vehicle automatic nozzle, up to 200L/min.

Manual & High-Flow Fuel Nozzles

AC-200

1.5-inch high-flow nozzle, up to 260L/min.

AC-500

2-inch high-flow nozzle, up to 300L/min.

AC-250

1.5-inch manual nozzle, up to 260L/min.

AC-290

1.5-inch high-flow manual nozzle, up to 260L/min.

AC-300

Manual bulk-fuel nozzle, up to 300L/min.

AC-310

Heavy-duty manual nozzle, up to 300L/min.

AC-2000

Compact manual nozzle, 5–80L/min.

AC-13A

Manual fuel nozzle, 5–80L/min.

Available configurations include up hooks, up-and-down hooks, long spouts, 1/2-inch to 2-inch replaceable spouts, coloured insulators, sleeves, swivels and magnet versions of selected Z•VA models.
