360 Degrees AVM and Al Detection System

AHD MDVR and ALL-in-one Intelligent Safety System

  • Screen size: 7 / 10.1 inch full touch control screen

  • Video input: 4CH, with 210 degree fisheye 1080P cameras

  • Display modes: multiple, 3D/2D view switchable

  • Al detection: built-in, reminding by display, blind zone indicator light and voice speaker

  • 360 Calibration: automatically

  • Can communication: support

  • DVR: support driving video recording, 8-512G SD memory card storage

  • Radar: support four-direction 16-probe ultrasonic radar (Optional)

  • Built-in ADAS, LDW, BSD functions

  • Optional function: G-sensor triggers recording

  • Power supply: DC12-24V

New Products

VEHICLE CAMERA SYSTEMS


  • Screen: 10.1 inch AHD wireless monitor

  • 30X Zoom: support optical 30x zoom and digital image stabilization, can clearly monitor targets from high altitude

  • Zoom in/out: zoom-in/out the screen image and switch between manual/automatic zoom through a foot switch

  • Wireless transmission distance: 300 meters in open area

  • Built-in DVR: 1CH loop recording, real-time video playback

  • Storage: SD memory card, 128G maximumly

  • Night vision distance: 15M, built-in 4 high-power infrared lights

  • Waterproof level: IP69K

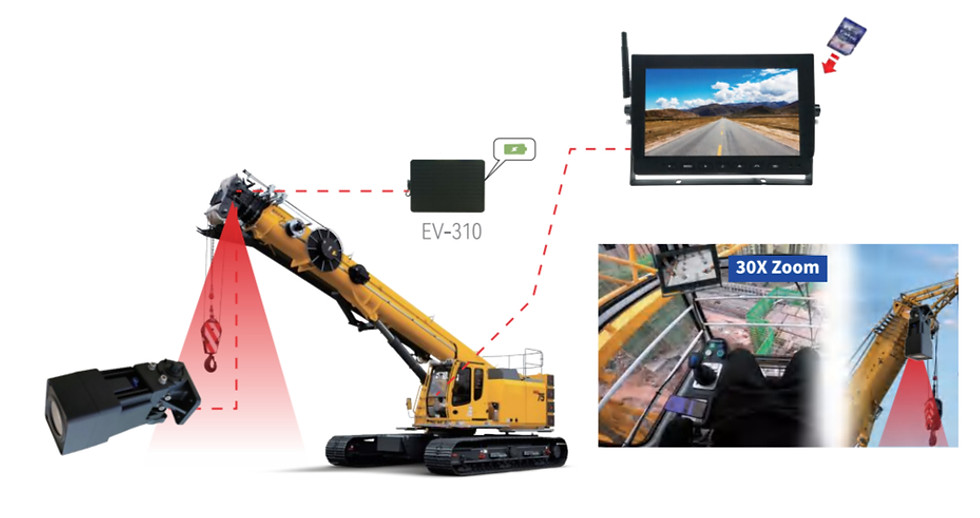

1080P 30X Zoom Wireless Camera System for Crane

EV-1010MWHQ-DVR


Visual Monitoring and Ultrasonic Radar Warning System

  • Screen: 7"/9"/10.1" AHD 4CH HD quad monitor

  • Video input: 4CH 1080P input and display, 4CH triggers control

  • DVR function: built-in, support 8G-256G C10 SD memory card

  • Recording files playback: support single channel real-time playback in the monitor

  • Ultrasonic radar detection function: built-in

  • Division alarm: front, rear, left and right

  • Ultrasonic radar quantity: 1-4PCS for each detection division, up to 16PCS maximumly

  • Radar sensor detection distance: 0-5M, separated adjustment for each radar Real-time distance display

  • Voice warning or buzzer

EV-7010MWAI-DVR


1080P Al Camera With A Control Box

  • System: PAL/NTSC

  • Resolution: 1080P

  • Al recognition algorithm: Built-in, 0.5TOPS

  • Minimum illumination: 0.1LUX/F1.2

  • Signal-to-noise ratio: >38db

  • Mirror or non-mirror: Can be set by control box

  • Flip function: Can be set by control box

  • Al detection: Can be set (pedestrian/vehicle, pedestrian, vehicle) by control box

  • Parking line: Can be set (Left, right, front, back) by control box

  • Video output: Default AHD 1080P/PAL system (1080P/ 720P/CVBS adjustable by control box, NTSC/PAL
    adjustable by control box)

  • Installation: Can be installed in front, back, left, and right positions

  • Waterproof level: IP69K

  • Power supply: DC12V

EV-130AI


1080P WIFI APP Al Detection Camera

EV-130AI-WIFI

  • Resolution: 1920*1080P

  • System: PAL (NTSC optional)

  • Viewing angle: 110 degrees in horizontal

  • Audio: support external speaker high-level output

  • Power supply: DC12V

  • Minimum illumination: 0.1 Lux

  • Al recognition algorithm: built-in, 0.5 TOPS

  • Detection type: pedestrians, vehicle, pedestrians & vehicle selectable by APP

  • WIFI transmission distance: ≥10 meters (Barrier Free)

  • Image: Mirror/non-mirror and image effects adjustable by APP

  • Parking line: ON/OFF, type and shape adjustable by APP

  • Distance measurement: ON/OFF by APP

  • Warning: ON/OFF by APP

  • Signal to Noise Ratio: >46dB (AGC OFF)

  • Waterproof level:IP69K


7/10.1 inch IPS high definition touch screen

  • Resolution: 1024*600

  • Viewing angle: Up 85°, Down 85°, Left 85°, Right 85°

  • AV input: 6CH 1080P/1080N/720P/720N/CVBS P/CVBS N input, cannot support mixed video signal or system input

  • 4CH trigger control

  • With external microphone, support voice control

  • Built-in 4G module and dual-module positioning tracking (optional)

  • Multiple warning uploads and analyses (optional)

  • Support rollover and collision alerts (optional)

  • TF card supports up to 256G

  • Power supply: DC12-36V

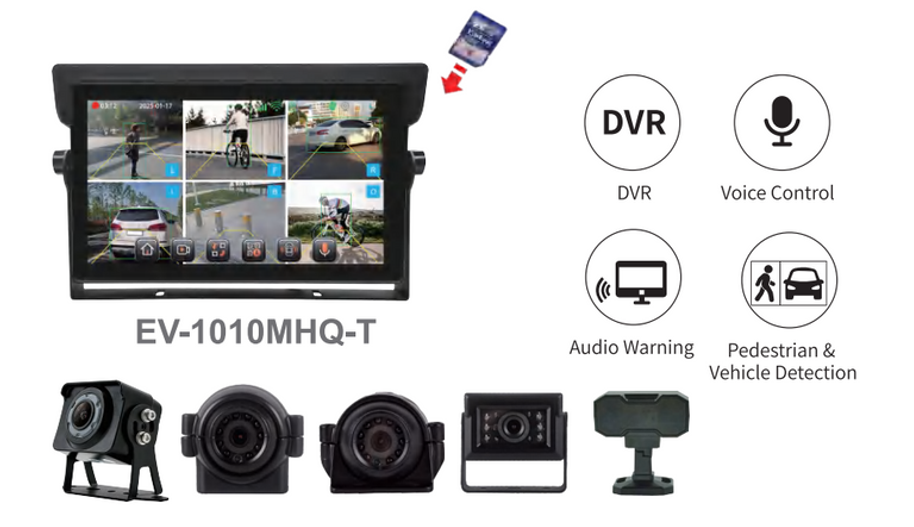

EV-1010MHQ-T


10.1 inch IPS high-definition touch screen

EV-1010MHQ-4G

  • Resolution: 1024*600

  • Viewing angle: Up 85°, Down 85°, Left 85°, Right 85°

  • AV input: 4CH 1080P/1080N/720P/720N/CVBS P/CVBS N input, cannot support mixed video

  • With external microphone, support voice control

  • Support video recording and real-time video upload monitoring function

  • Built-in 4G module and dual-module positioning tracking (Beidou/GPS), support IOS,
    Android mobile and PC network

  • Multiple warning uploads and analyses

  • Support rollover and collision alerts

  • TF card supports up to 256G

  • Power supply: DC12-36V


  • Video input: Support CVBS/720P/1080P N/P

  • Al recognition algorithm: Built-in, 0.5TOPS

  • Video input: Support 1CH video input

  • Video output: Default AHD 1080P/PAL system (1080P/ 720P/CVBS/NTSC/PAL can be set by control button)

  • Audio output: 1CH warning audio output+1CH
    warning output (high level)

  • Mirror or none mirror: Can be set by control button

  • Flip function: Can be set by control button

  • Al detection: Can be set (pedestrian/vehicle, pedestrian, vehicle) by control button

  • Parking line: Can be set(Left, right, front, back)

  • by control button

  • Power supply: DC12-24V

AHD/CVBS Al Detection Control Box

EV-303AI

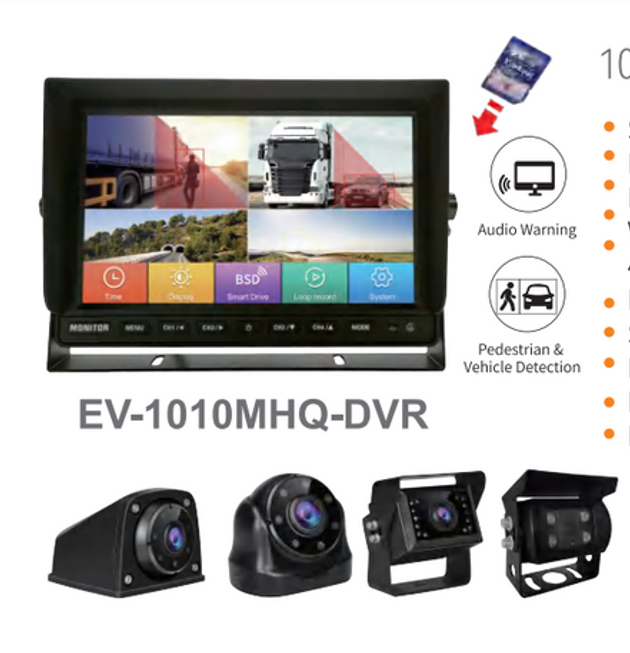

1080P 4CH BSD & DVR Monitor System

EV-1010MHQ-DVR


  • Screen: 7"/9"/10.1" IPS full viewing angle HD screen
    Full touch screen control
    Resolution: 1024*RGB*600
    Video input: 4CH AHD 1080P/720P input,
    4CH trigger control

  • Recording: built-in DVR, real-time playback

  • Storage: 8-256G SD memory card

  • Built-in BSD and Al functions

  • DMS function Optional

  • Power supply: DC12-24V


Driver Behavior Monitoring Alert Device

EV-507DMS

  • 1920*1080/1280*720 2.8mm Lens

  • WDR

  • Viewing angle: 80 degree

  • Accuracy distance: 1m

  • Application: In vehicle

  • Sound alarm

  • Feature: Driver safety with Distraction, Fatigue, Smoking, Calling Warning, Not
    Wearing A Seatbelt

  • Voice warning with buzzer

  • Mirror and non-mirror adjustable

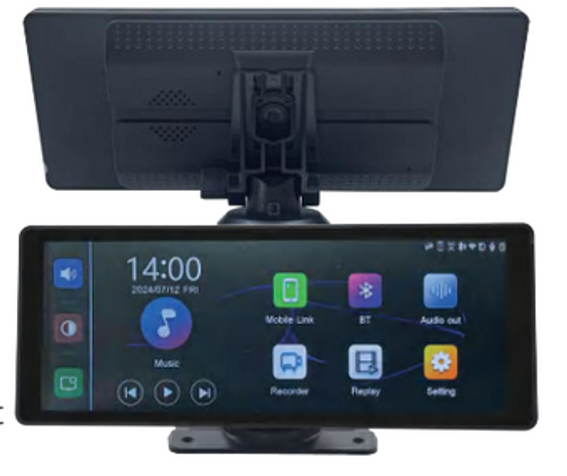

Universal Car Monitor with Smartphone Interconnection

EV-M1000 / EV-M1000D

EV-M1000

  • Screen: 10.26" IPS full touch control screen

  • Full viewing angle: Up 85°, Down 85°, Left 85°, Right 85°

  • System: PAL/NTSC automatically

  • Video input: 1CH CVBS input

  • Audio: built-in spearker, FM audio emmisioon,
    AUX audio output

  • Trigger: automatically triggered when there's video input

  • Smartphone interconnection function: support

  • Compatible with IOS and Android

  • Power supply: Type-C interface 5V/power cord DC12-24V

​

EV-M1000D

  • Screen: 10.26" IPS full touch control screen

  • Resolution: 600*RGB*1600

  • Full viewing angle: Up 85°, Down 85°, Left 85°, Right 85°

  • System: PAL/NTSC automatically

  • Video input: 1CH built-in front camera input+ 1CH backup camera input

  • Audio: built-in spearker, FM audio emmisioon, AUX audio output

  • Built-in DVR: TF card storage, maximum support 256G

  • Smartphone interconnection function: support

  • Compatible with IOS and Android

  • Power supply: Type-C interface 5V/power cord


1080P DVR Monitor with Smartphone Interconnection

  • 7"/ 10.1" HD IPS full touch control screen

  • Resolution: 1024*600

  • 4CH video signal input, 1CH audio input (CH1), 4CH trigger control

  • Support 1/2/3/4 images display adjustable

  • Support mixed input for AHD 1080P/720P cameras

  • PAL/NTSC automatically

  • Support 1CH wireless connection for IOS / Android system smartphone

  • Built-in DVR: support 4 channel real time recording

  • Storage: support 32G-256G high speed SD card
    Support multiple languages

  • Other features: dash cam, FM emission, bluetooth

EV-1026MY / EV-7026MY
