AHD MONITORS

VEHICLE CAMERA SYSTEMS


Ultra High Definition Full HD Heavy Duty Monitor

EV-709MIAHD / EV-709MHQ

Main Features

  • 7 inch MIPI 4D screen, 16:9 screen ratio

  • Resolution: 1200*RGB*1920

  • Full viewing angle: Up 85°, Down 85°, Left 85°, Right 85°

  • 3CH video input and 2CH audio input
    (CH1&CH2), 3CH trigger control

  • Support 1080P/720P/CVBS multiple

  • signals mixed input

  • PAL & NTSC system automatically

  • Built-in speaker

  • Support OSD menu setting and IR

  • remote control

  • DC 12-24V

  • 7 inch MIPI 4D screen

  • Screen ratio 16:9

  • Resolution:1200*RGB*1920

  • Full viewing angle: Up 85°, Down 85°, Left 85°, Right 85°

  • 4CH video input and 1CH audio input(CH1), 4CH trigger control

  • Support 4CH 1080P/720P/CVBS multiple signals mixed input

  • PAL&NTSC system automatically

  • Built-in speaker, auto dim

  • Support OSD menu setting

  • DC 12-24V


  • Screen size: 5 inch high definition screen

  • Resolution: 800*R.G.B*480

  • System: PAL & NTSC automatically

  • AV input: 3CH video and 2CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V

EV-5588MAHD

5 Inch Stand Alone

AHD Monitor


5 Inch Quad
AHD Monitor

EV-5588MHQ

  • Screen size: 5 inch high definition screen

  • Resolution: 800*R.G.B*480

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 4CH

  • Power supply: DC 12-24V


  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 3CH video and 2CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V

7 Inch AHD Rear View Mirror Monitor

EV-777BAHD


7 Inch AHD Rear View Mirror Monitor

EV-737BHD

  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 3CH video and 2CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V


  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 3CH video and 2CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V

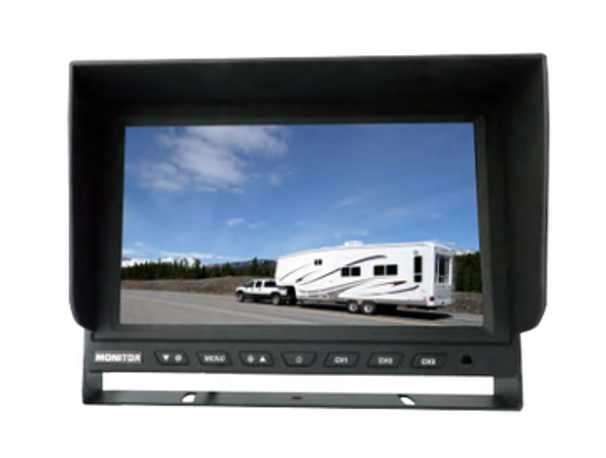

7 Inch Stand Alone AHD Monitor

EV-7010MAHD

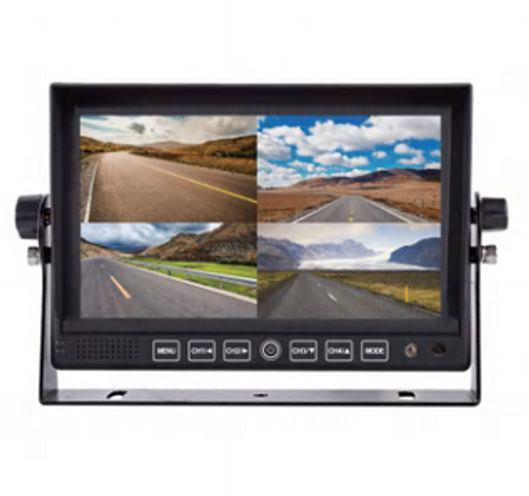

7 Inch AHD Heavy Duty Quad Monitor

EV-7010MHQ

  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 4CH

  • Power supply: DC 12-24V


  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 3CH video and 2CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V

7 Inch AHD Monitor with Touch Button

EV-7012MAHD


  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 4CH

  • Touch button control

  • Power supply: DC 12-24V

AHD Quad Monitor with Touch Button

EV-7012MHQ


7 Inch Quad Monitor Built-in DVR

EV-7010MHQ-DVR

  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 4CH

  • Built-in DVR: support 512G SD memory card maximumly

  • Power supply: DC 12-24V


Quad DVR Monitor with Touch Button

EV-7012MHQ-DVR

  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 4CH

  • Built-in DVR: support 512G SD memory card maximumly

  • Power supply: DC 12-24V

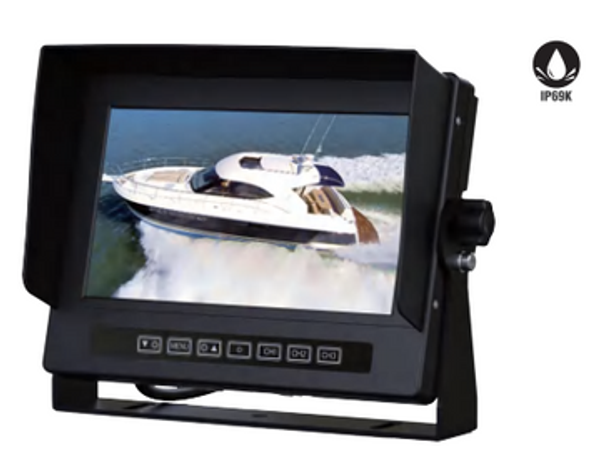

7 Inch Waterproof

AHD Monitor

EV-7013MAHD

  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 3CH video input, 1080P|720P/ CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V


7 Inch Waterproof AHD Quad Monitor

EV-7013MHQ

  • Screen size: 7 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1080P/720P/ CVBS compatible

  • Trigger: 4CH

  • Power supply: DC 12-24V


9 Inch Stand Alone AHD Monitor

EV-9010MAHD

  • Screen size: 9 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 3CH video and 2CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V


  • Screen: 9".
    , 1024*600 resolution

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1CH audio input, 1080P/720P/CVBS compatible

  • Trigger: 4CH

  • Built-in DVR: support 512G SD memory

  • card maximumly
    Without DVR Optional

  • Power supply: DC 12-24V

9 Inch AHD Quad DVR Monitor

EV-9012MHQ-DVR


10.1 Inch Stand Alone AHD Monitor

EV-1010MAHD

  • Screen size: 10.1 inch high definition screen

  • Resolution: 1024*R.G.B*600

  • System: PAL & NTSC automatically

  • AV input: 3CH video and 2CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 3CH

  • Power supply: DC 12-24V


  • Screen: 10.1", 1024*600 resolution

  • System: PAL & NTSC automatically

  • AV input: 4CH video input, 1CH audio input,
    1080P/720P/CVBS compatible

  • Trigger: 4CH

  • Built-in DVR: support 512G SD memory

  • card maximumly

  • Without DVR Optional

  • Power supply: DC 12-24V

10.1 Inch AHD Quad DVR Monitor

EV-1010MHQ-DVR
