Hand lever pump

A hand lever pump is a practical, manual fluid-transfer device designed for scenarios where electric or fuel-powered pumps are unavailable or unnecessary. It operates on a simple mechanical principle: users repeatedly move a lever up and down to create suction or pressure, which then draws in or pushes out liquids-most commonly water, but also oils or other low-viscosity fluids in some cases.


This type of pump is valued for its portability, durability, and low maintenance needs. It finds wide use across different fields, such as agricultural irrigation (to draw water from wells for crops), outdoor activities like camping or hiking (for accessing water from streams or tanks), and emergency response (as a backup tool for water supply during power outages or natural disasters).

TS-32/TS-32-ALUM/HP-01/K2/TS-51/TS-51PP/TS-50/TS-100|


Manual rotary and lever-operated pumps for transferring compatible fuels, oils, water and other low-viscosity liquids without relying on an external power source.

Manual Rotary & Lever Pumps

TS-100

Manual rotary aluminium drum pump · 100 L/min maximum flow · 60°C maximum fluid temperature · 1000 mPa·s maximum viscosity · 1-1/4" inlet/outlet

TS-32

Cast-iron manual rotary hand pump · 30 L/min · 5 m lift · 1 m suction · 135 cm overall dimension

TS-32-ALUM

Aluminium-alloy manual rotary hand pump · 30 L/min · 5 m lift · 1 m suction · 135 cm overall dimension

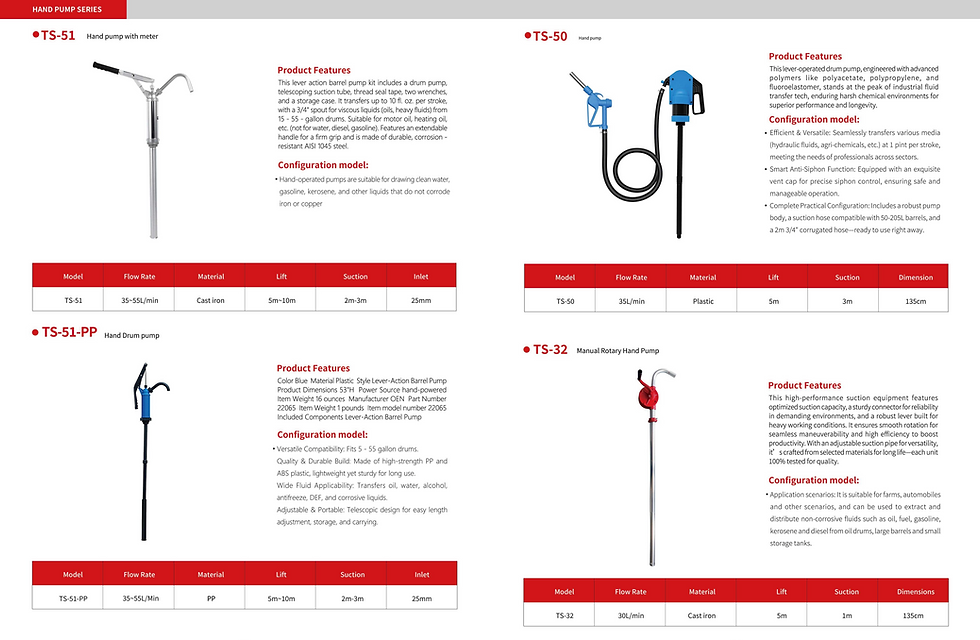

TS-51

Cast-iron lever hand pump with meter · 35–55 L/min · 5–10 m lift · 2–3 m suction · 25 mm inlet

TS-51-PP

PP lever-operated hand drum pump · 35–55 L/min · 5–10 m lift · 2–3 m suction · 25 mm inlet

TS-50

Plastic lever-operated drum pump · 35 L/min · 5 m lift · 3 m suction · 135 cm overall dimension

HP-01

Cast-iron mobile hand pump with meter · 35–55 L/min · 15–20 m lift · 3–4 m suction · 1" inlet

Portable powered drum pumps for transferring compatible fuels, water-based liquids, lubricants, light oils, DEF and selected chemicals from drums, tanks and IBC containers.

Portable Electric & Battery Drum Pumps

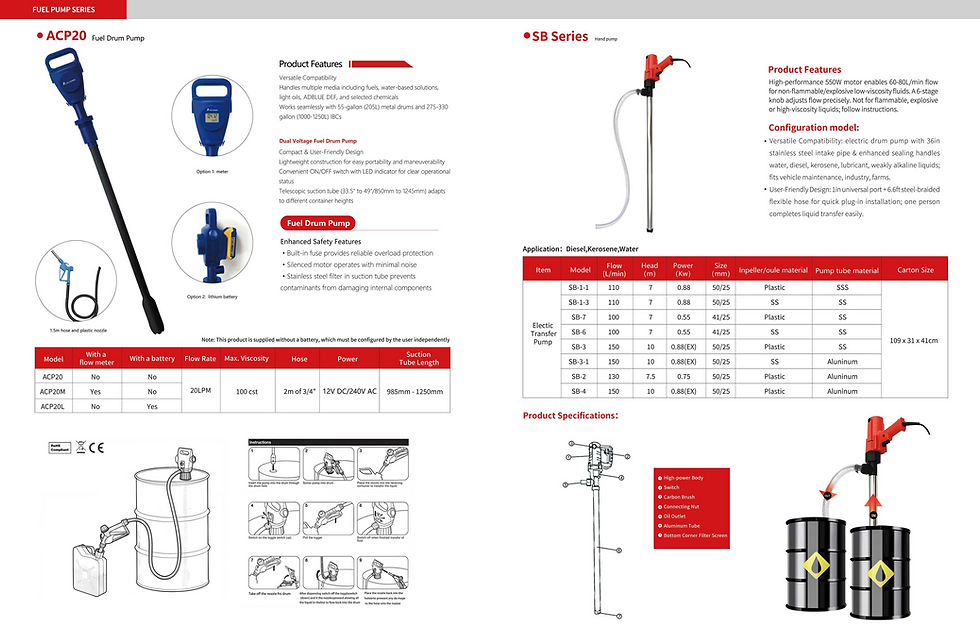

ACP20

Dual-voltage fuel drum pump without flow meter · 20 L/min · maximum viscosity 100 cSt · 2 m × 3/4" hose · 12V DC/240V AC · 985–1250 mm suction tube

ACP20M

Dual-voltage fuel drum pump with flow meter · 20 L/min · maximum viscosity 100 cSt · 2 m × 3/4" hose · 12V DC/240V AC · 985–1250 mm suction tube

ACP20L

Battery-compatible fuel drum pump without flow meter · 20 L/min · maximum viscosity 100 cSt · 2 m × 3/4" hose · 985–1250 mm suction tube · battery supplied separately

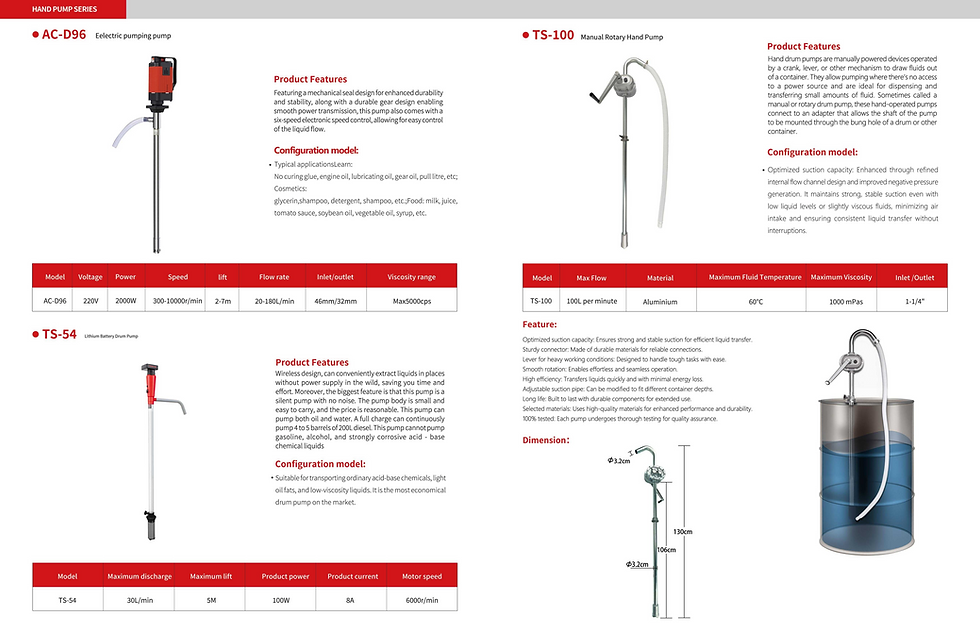

AC-D96

Electric drum pump · 220V · 2000W · 20–180 L/min · 300–10,000 r/min · 2–7 m lift · maximum viscosity 5000 cps · 46/32 mm inlet/outlet

TS-54

Lithium-battery drum pump · 30 L/min maximum discharge · 5 m maximum lift · 100W · 8A · 6000 r/min

Hand lever pump Product Range

We supply manual rotary pumps, lever-operated barrel pumps, portable electric drum pumps and battery-powered liquid transfer pumps for diesel, kerosene, water, lubricants, light oils, DEF and other compatible fluids, depending on the selected model.

MANUAL & ELECTRIC FLUID TRANSFER PUMPS

Aluminium-alloy semi-rotary hand pumps for transferring clear and light liquids, with multiple inlet sizes and flow capacities for different installations.

K00–K7 Semi-Rotary Hand Pump Series

K00

Aluminium-alloy semi-rotary hand pump · 7 L/min · 25 m head · 5 m suction lift · 3/8" inlet

K0

Aluminium-alloy semi-rotary hand pump · 11.5 L/min · 25 m head · 5 m suction lift · 1/2" inlet

K1

Aluminium-alloy semi-rotary hand pump · 17.3 L/min · 25 m head · 5 m suction lift · 3/4" inlet

K2

Aluminium-alloy semi-rotary hand pump · 22.5 L/min · 25 m head · 6 m suction lift · 1" inlet

K3

Aluminium-alloy semi-rotary hand pump · 29 L/min · 22 m head · 6 m suction lift · 1-1/4" inlet

K4

Aluminium-alloy semi-rotary hand pump · 40 L/min · 22 m head · 6 m suction lift · 1-3/4" inlet

K5

Aluminium-alloy semi-rotary hand pump · 65 L/min · 20 m head · 6.5 m suction lift · 1-1/2" inlet

K7

Aluminium-alloy semi-rotary hand pump · 105 L/min · 18 m head · 6.5 m suction lift · 2" inlet

Electric transfer pumps for diesel, kerosene, water and other compatible non-flammable, low-viscosity liquids. Available with different flow rates, heads, power ratings and tube configurations.

SB Electric Transfer Pump Series

SB-1-1

Electric transfer pump · 110 L/min · 7 m head · 0.88 kW · 50/25 mm size

SB-1-3

Electric transfer pump · 110 L/min · 7 m head · 0.88 kW · 50/25 mm size

SB-7

Electric transfer pump · 100 L/min · 7 m head · 0.55 kW · 41/25 mm size

SB-6

Electric transfer pump · 100 L/min · 7 m head · 0.55 kW · 41/25 mm size

SB-3

Explosion-protected electric transfer pump configuration · 150 L/min · 10 m head · 0.88 kW · 50/25 mm size

SB-3-1

Explosion-protected electric transfer pump configuration · 150 L/min · 10 m head · 0.88 kW · 50/25 mm size

SB-2

Electric transfer pump · 130 L/min · 7.5 m head · 0.75 kW · 50/25 mm size

SB-4

Explosion-protected electric transfer pump configuration · 150 L/min · 10 m head · 0.88 kW · 50/25 mm size
